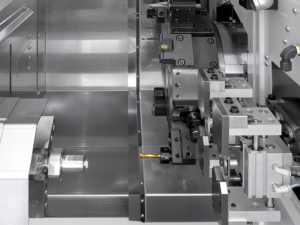

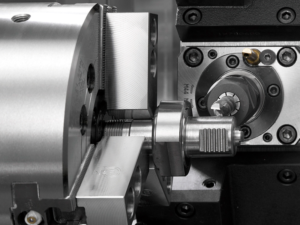

The tool post is a single slide with a y-axis (01RY) mechanism only that achieves both rigidity and high-speed travel with the x-axis as the main axis and a linear guide for the z-axis

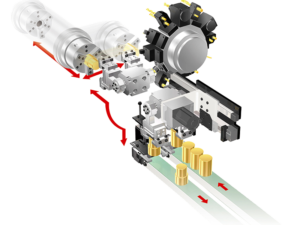

A wide range of automation needs are met using an enhanced system configuration centered on the loader head
| Item | LZ-01R2 | LZ-01RY2 |
| Machining capacity | ||
| Max. work length | 80 mm | |
| Max. blank diameter | ||
| Power chuck | 0 70 mm | |
| Collet chuck | 0 50 mm | |
| Spindle | ||
| Number of spindle | 1 | |
| Spindle speed range | 60 – 6,000 min-1 | |
| Inner diameter of draw tube | 0 32 mm | |
| Chucking system | Hydraulic cylinder | |
| Type of collet chuck | Spring collet chuck | |
| Power chuck size and type | 6″ Hydraulic chuck | |
| Turret | ||
| Number of turret | 1 | |
| Turret stations | 12 st. | |
| Tool shank size | 20 mm Sq. | |
| I.D. tool hole size | 0 25 mm | |
| Index time | 0.2 sec./1 pos. | |
| Slide | ||
| Slide stroke X-axis | 245 mm | |
| Z-axis | 240 mm | |
| Y-axis | – | ± 35 mm |
| Rapid traverse rate X-axis | 20 m/min. | |
| Z-axis | 24 m/min. | |
| Y-axis | – | 12.5 m/min. |
| Revolving tool | ||
| Number of revolving tool | MAX. 6 | |
| Spindle speed range | 100 – 4,000 min-1 | |
| Machining capacity Drilling | MAX. 0 13 mm | |
| Tapping | MAX. M8 x 1.25 | |
| Tank capacity | ||
| Hydraulic tank capacity | 17 L | |
| Lubricating tank capacity | 2 L | |
| Coolant tank capacity | 140 L | |
| Machine dimensions | ||
| Machine height | 1,680 mm | |
| Floor space | 2,100 mm x 1,555 mm | |
| Machine weight | 3.600 kg | |
| Motors | ||
| Spindle motor 50% ED/Cont. | 75/5.5 | |
| Revolving tool motor | 2.5 kW | |
| Power supply | ||
| Voltage | AC 200 V ± 10%, | 50/60 Hz ± 1 HZ |
| Capacity | 19 KVA | 20 KVA |
| Air supply | 0.5 MPa (5 kgf/cm2) | |
| Fuse | 75 A | |
| Loader specification | ||
| Hands type | Double hands | |
| Max. work size | 70 x 80 mm Dia | |
| Min. work size | 10 x 10 mm Dia | |
| Max. work weight | 0.7 kg x 2 | |
| Servicing time | 6.0 sec | |
| Control & driving method | PMC & air operating |
Transfer detecting device, Tool compensation number:64, Cs-axis drive unit, Splashguard interlock, Revolving tool drive (LZ-01RY2), Pneumatic system, High-pressure coolant
Standard complete set:
Optional Accessories and Options:
You can get additional information from our managers.
Please note that the manufacturer may change the design and specifications without prior notice.
